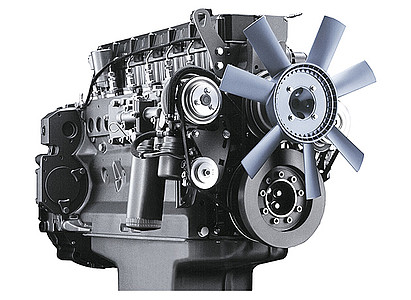

BF 4 M 1013 FC

Modern water-cooled 4-cylinder in-line engine.
Three separate mounting options for gear-driven hydraulic pumps.
Easily accessible service points on one engine side.
Exchangeable cylinder liners in cooling water flow.
Displacement 1.2 liters per cylinder.
Compact design, high power-to-volume-ratio.
Turbocharging with charge air cooling, integrated engine cooling package optional.
Integrated high-pressure fuel injection system with single injection pumps.
Electronic engine governor with diagnostic facilities with CAN-Bus optional.

Technical data
Emission norms EU II, US T2
Number of cylinders 4
Bore 108 mm4.3 in
Stroke 130 mm5.1 in
Displacement 4.8 l293 cu in
Maximum nominal speed 2300 rpm
Power output 118 kW158 hp
at speeds 2300 rpm
Max. torque 700 Nm516 lb/ft
at speeds 1400 rpm
Min. idling speed 650 rpm
Specific fuel consumption 204 g/kWh0.34 lb/hph
Length 895 mm35.2 in
Width 634 mm25 in
Height 940 mm37 in
Weight 432 kg952 lb
Download data sheet (PDF-file)
