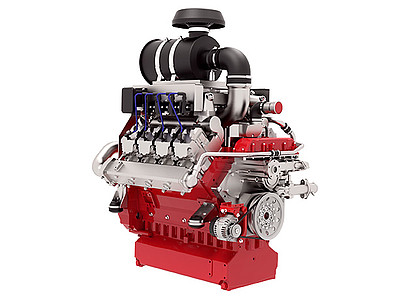

TCG 2015 V8

Watercooled V8 with turbocharging, charge air cooling and four-valve technology.
Complete gas train and engine monitoring system for natural gas operation.
Individual cylinder heads, wet cylinder liners, long oil change intervals and easy changing of the engine fluids reduce the running and service costs and increase the availability of the machinery.
Easy installation: Turn-key solution with single cooling circuit and low space claim due to the very compact engine design.
Gear driven fan-hub and flexible cooling options lead to reduced maintenance and installastion costs.
Strong base engine well proved in many applications under toughest conditions.

Technical data
Emission norms US EPA 40CFR60
Number of cylinders 8
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 15.9 l969 cu in
Typical generator power at 50 Hz / 1500 rpm
Typical generator power (COP) 209 kW280 hp
Typical generator power (PRP) 220 kW295 hp
Typical generator power at 60 Hz / 1800 rpm
Typical generator power (COP) 222 kW298 hp
Typical generator power (PRP) 240 kW322 hp
Length 1575 mm62 in
Width 1110 mm44 in
Height 1745 mm69 in
Weight 1290 kg2844 lb
Download data sheet (PDF-file)
