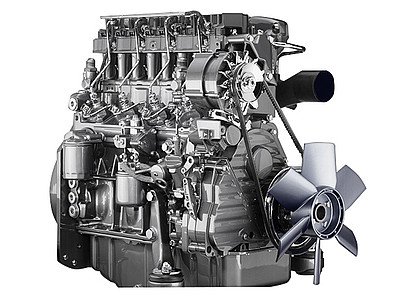

BF 4 M 2011

4-cylinder turbocharged engine.
Oil-cooled (with conventional cooling system).
13% more power in comparison to the successor 1011F.
100% extended belt change interval.
PTO for hydraulic pump drive is increased by 55% at 28 kW/2800 min-1.
All service points on one engine side.
Compact engine design.

Technical data
Emission norms EU II, US T2
Number of cylinders 4
Bore 94 mm3.7 in
Stroke 112 mm4.4 in
Displacement 3.1 l190 cu in
Maximum nominal speed 2800 rpm
Power output 68 kW87 hp
at speeds 2800 rpm
Max. torque 270 Nm199 lb/ft
at speeds 1600 rpm
Min. idling speed 900 rpm
Specific fuel consumption 205 g/kWh0.34 lb/hph
Length 630 mm24.8 in
Width 495 mm19.5 in
Height 703 mm27.7 in
Weight 247 kg545 lb
Download data sheet (PDF-file)
