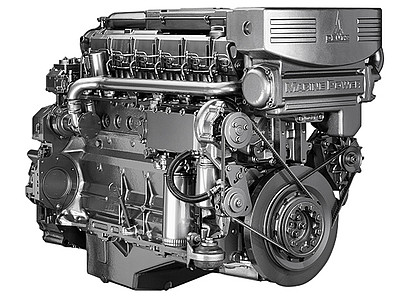

BF 6 M 1013 MC

Water-cooled, four-stroke, 6-cylinder in-line engine
water-cooled turbocharger and exhaust pipes
gear-driven power take-offs
modern high-pressure injection system with single injection pumps
charge air cooling by engine coolant in keel cooled configuartion or raw water cooled
compact dimensions
easily accessible maintenance and service points on one side of the engine

Technical data
Number of cylinders 6
Bore 108 mm4.3 in
Stroke 130 mm5.1 in
Displacement 7.2 l439 cu in
Propulsion engines LG A 148 kW198 hp
Propulsion engines LG B 174 kW233 hp
Specific fuel consumption 204 g/kWh0.34 lb/hph
Length 1408 mm55.4 in
Width 850 mm33.5 in
Height 1197 mm47.1 in
Weight 760 kg1676 lb
Download data sheet (PDF-file)
