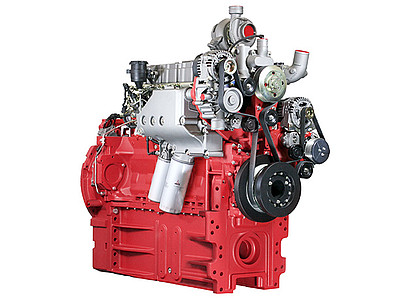

TCD 2013 L4 2V (Agri)

Engine for agricultural machinery.
Modern, liquid-cooled 4-cylinder in-line engine.
Turbocharged with intercooler
Powerful, rugged engine providing high power density
PTO facilities integrated in geared drive
Electronic engine control with intelligent adaptation to drive management
High-pressure fuel injection with DEUTZ Common Rail System (DCR®)
4-cylinder optional with mechanical injection pump up to 104 kW

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 4
Bore 108 mm4.3 in
Stroke 130 mm5.1 in
Displacement 4.8 l293 cu in
Maximum nominal speed 2300 rpm
Power output 129 kW173 hp
at speeds 2300 rpm
Max. torque 670 Nm494 lb/ft
at speeds 1600 rpm
Min. idling speed 650 rpm
Specific fuel consumption 209 g/kWh0.34 lb/hph
Length 857 mm33.7 in
Width 638 mm25.1 in
Height 870 mm34.3 in
Weight 500 kg1102 lb
Download data sheet (PDF-file)
