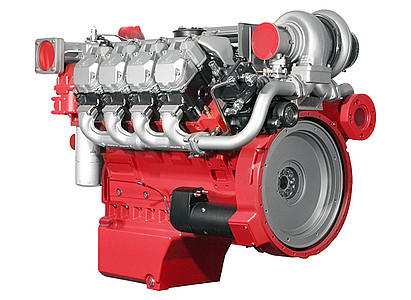

TCD 2015 V08

Water-cooled V8 engine with turbocharging, charge air cooling and four-valve technology.
Very compact engine design reduces the installation costs.
Wet cylinder liners, long oil change intervals and easy changing of the engine fluids reduce the running and service costs and increase the availability of the machinery.
Best cold starting properties even under extreme conditions.
The V6 is also available as a flat version for extremely compact installations.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
Electronic, solenoid valve-controlled DEUTZ MV-System® (pump-line-nozzle) ensures optimum engine performance at low consumption.
The robust engine design allows worldwide operation even with high sulphur fuels.

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 8
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 15.9 l970 cu in
Maximum nominal speed 2100 rpm
Power output 500 kW671 hp
at speeds 2100 rpm
Max. torque 2890 Nm2132 lb/ft
at speeds 1400 rpm
Min. idling speed 600 rpm
Specific fuel consumption 207 g/kWh0.34 lb/hph
Length 1141 mm44.9 in
Width 932 mm36.7 in
Height 1172 mm46.1 in
Weight 1245 kg2745 lb
Download data sheet (PDF-file)
