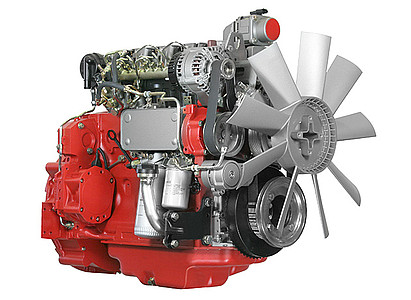

TD 2012 L4

4-cylinder engine with inline turbocharging,oil-cooled or optionally with an integrated cooling system. Also available with water cooling and charge air cooling.
The compact engine design and an optional PTO drive reduce the installation costs and increase the number of applications.
Best cold starting properties even under extreme conditions.
The engines in the power range < 56 kW meets to the US EPA Tier 4 i.
The robust engine design allows worldwide operation even with high sulphur fuels.
All parts for maintenance on one side of the engine, long oil change intervals and easy changing of engine fluids reduce the running costs and increase the availability of the machinery.
An efficient injection system and optimized combustion ensure optimum engine performance at low consumption.

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 4
Bore 101 mm4 in
Stroke 126 mm5 in
Displacement 4 l247 cu in
Maximum nominal speed 2300 rpm
Power output 66 kW89 hp
at speeds 2300 rpm
Max. torque 350 Nm258 lb/ft
at speeds 1600 rpm
Min. idling speed 900 rpm
Specific fuel consumption 237 g/kWh0.39 lb/hph
Length 766 mm30.2 in
Width 628 mm24.7 in
Height 825 mm32.5 in
Weight 400 kg882 lb
Download data sheet (PDF-file)
